• Wheelsize: 29”

• Tyre Clearance: Designed for 2.4” with more than twice the industry standard mud clearance

• Head Tube: 44mm

• Fork Axle to Crown: 510mm

• Bottom Bracket: BSA 73mm Threaded

• Chainline: 52mm

• Hub Spacing: 148mm (Boost)

• Axle: 180mm / 12x1

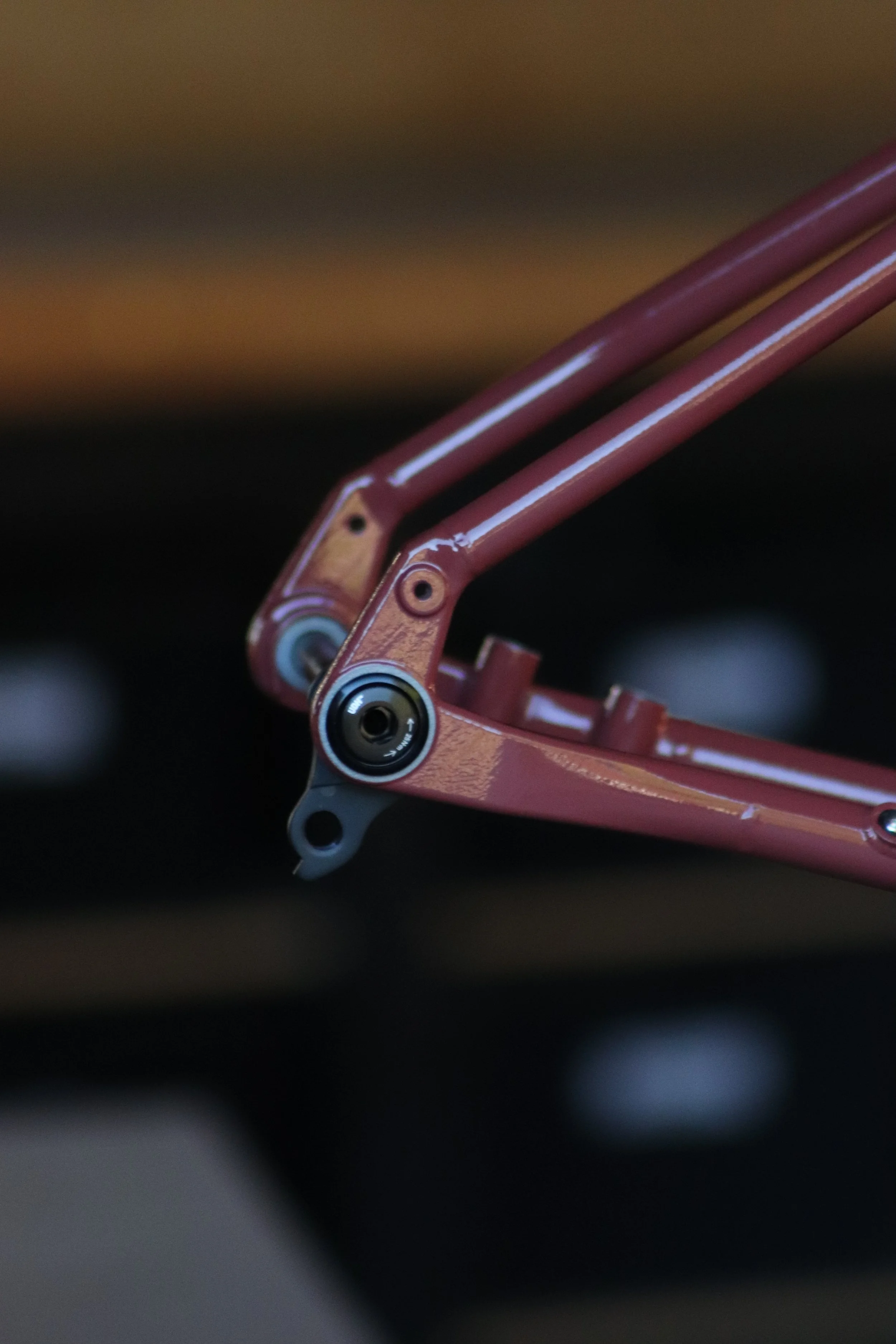

• Hanger: UDH (SRAM direct mount compatible)

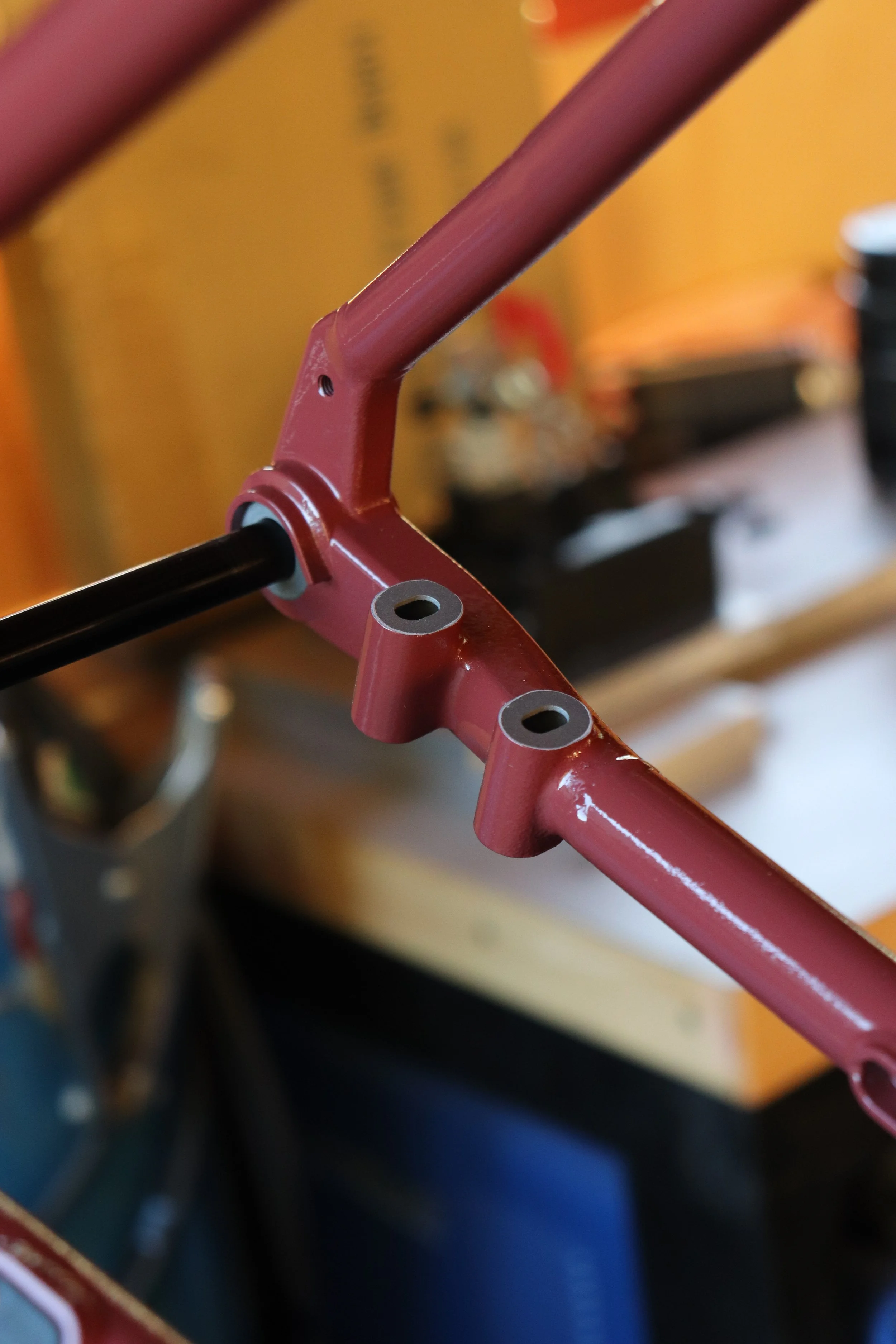

• Rear Brake Mount: Flatmount 160 (intended for an adapter to 160/180 post mount)

• Flatmount: Depth is 25mm, recomended bolt length is 32mm.

• Seat Post: 27.2mm

• Seat Post Clamp: 31.8mm

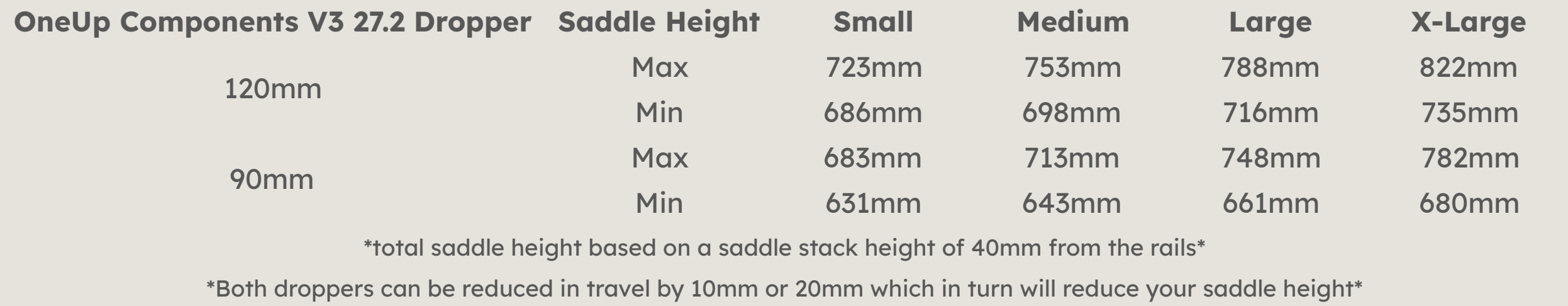

• Max Seatpost Insertion: Small 122mm | Medium 140mm | Large 157mm | X-Large 173mm

• Min Seatpost Insertion: 70mm on all sizes. Note that the seatpost you’re using will have it’s own minimum insertion which could be more than 70mm.

• Headset (tapered steerer tube): Top ZS44 / Bottom EC44

• Fork: The frame is designed around 100mm of suspension with an axle to crown of approximatly 510mm. You can also use a suspension corrected ridged fork.

• Tyre Clearance: Designed for 2.4” with more than twice the industry standard mud clearance.

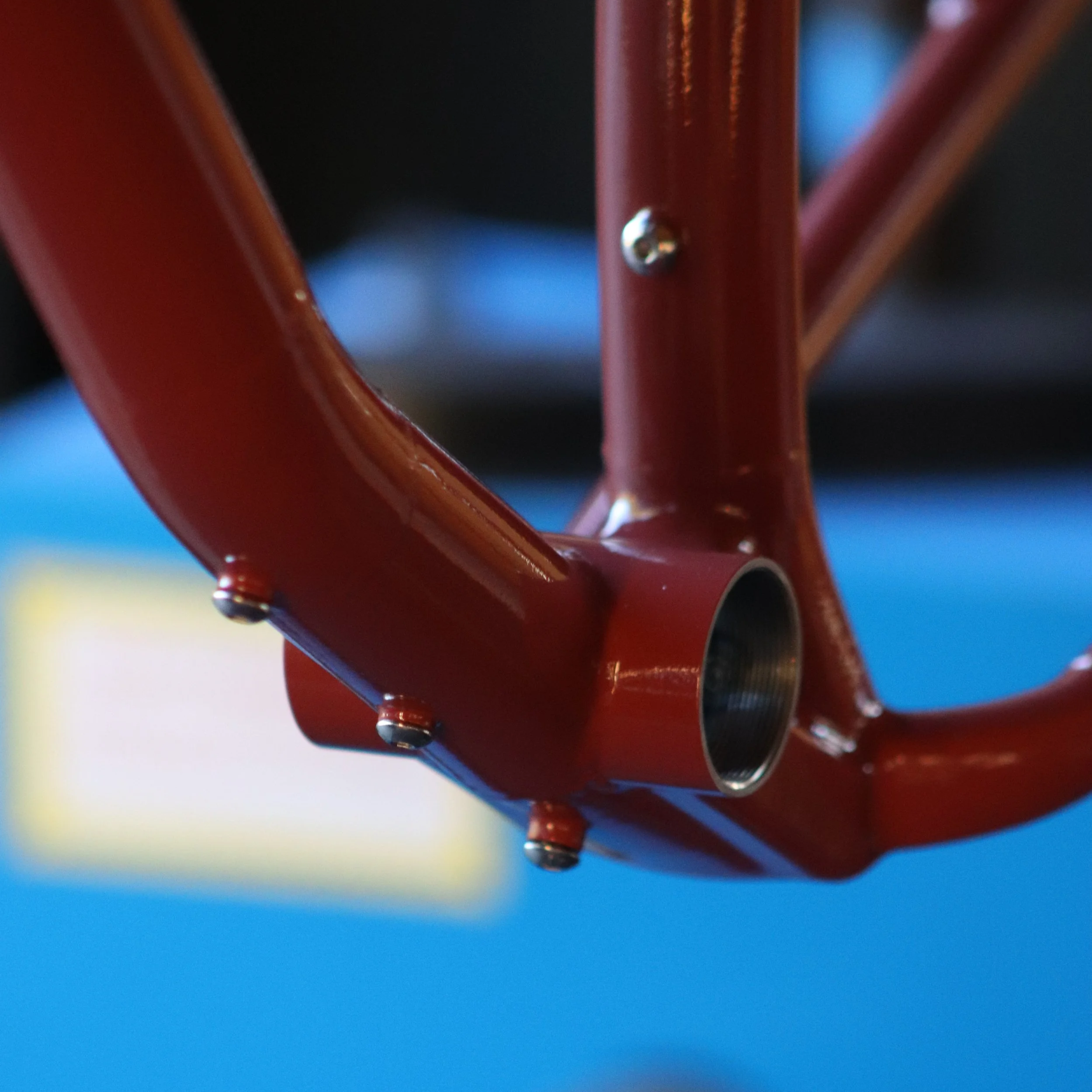

• Bottom Bracket: BSA 73 Threaded, this will support most common crank options out there.

• Hanger: UDH (SRAM direct mount compatible)

• Axle: Length 180mm / Thread 12x1

• Seat Post: 27.2mm (Check “frame Spec” for additional seatpost information regarding min/max insertion)

• Seat Post Clamp: 31.8mm

• Chainring: Max 40t / Min 26t on a 52mm chainline

• Rear Brake: Flatmount 160, this will fit a flatmount brake with a 160mm/180mm rotor or with an adapter to use a more common post mount brake with a 160mm/180mm rotor

• Cables: Routing is internal with a double port either side of the downtube for tidy routing no matter which way you run your brakes. There is provision for either wireless or mechanical gears/dropper depending on your preference

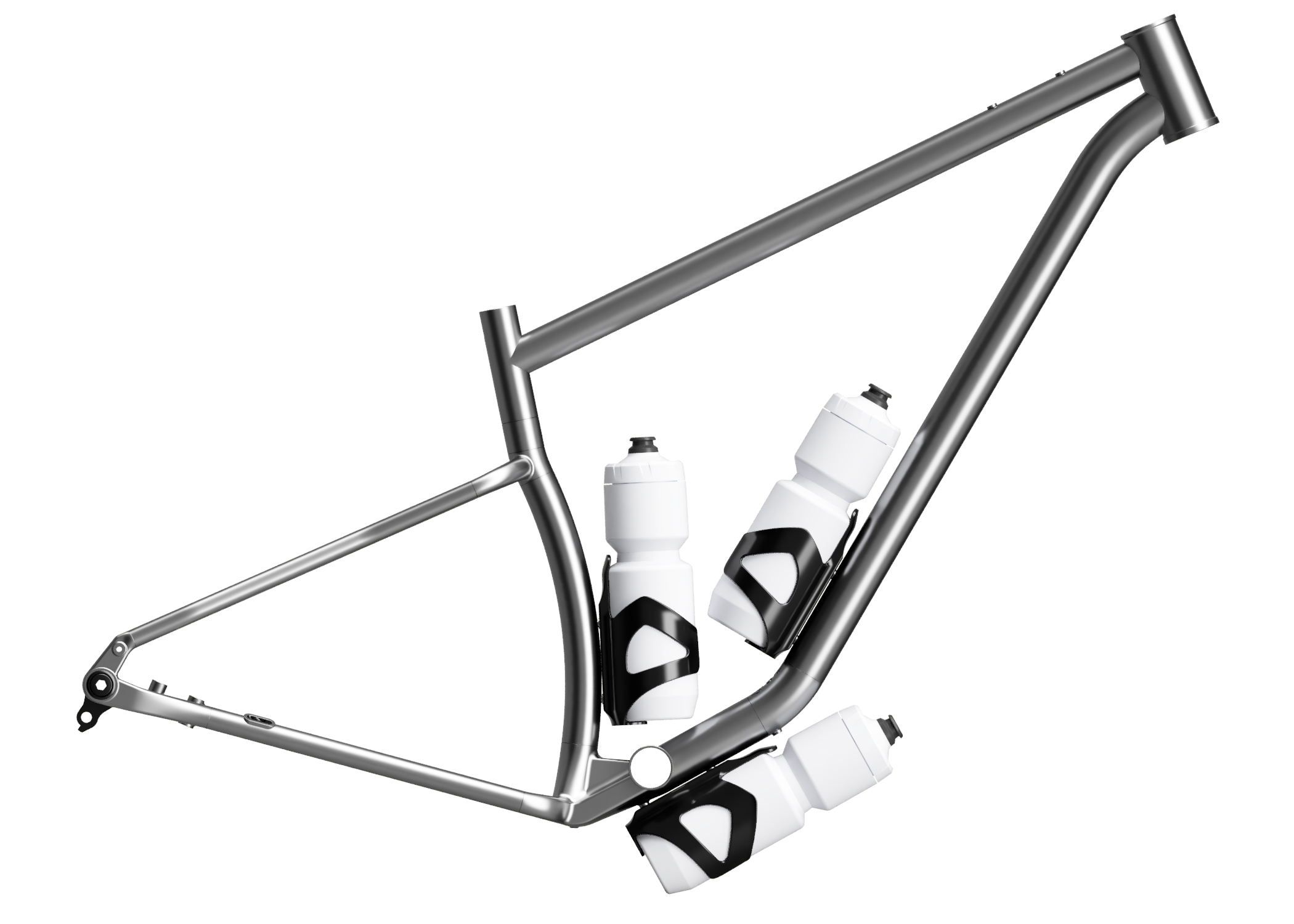

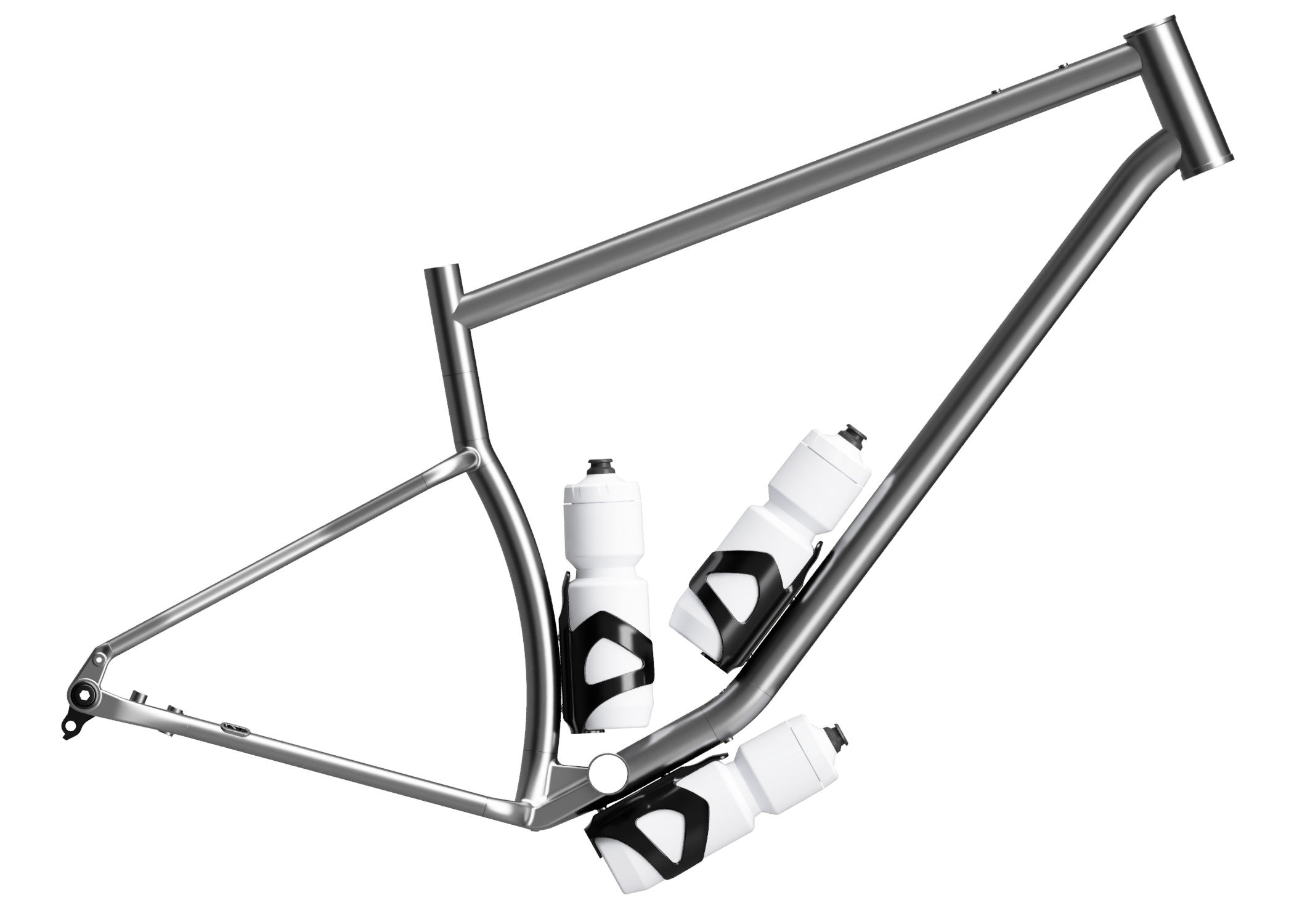

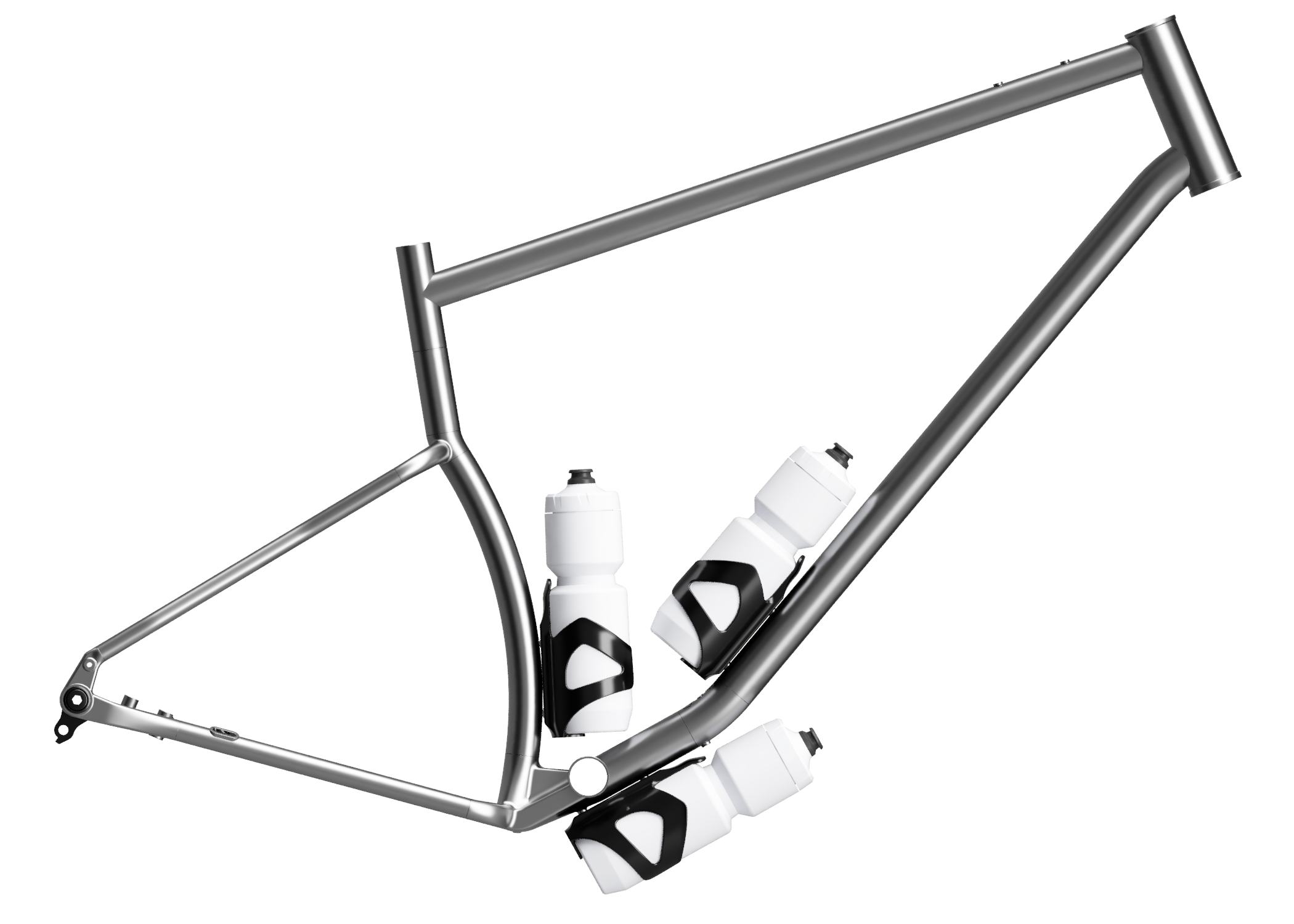

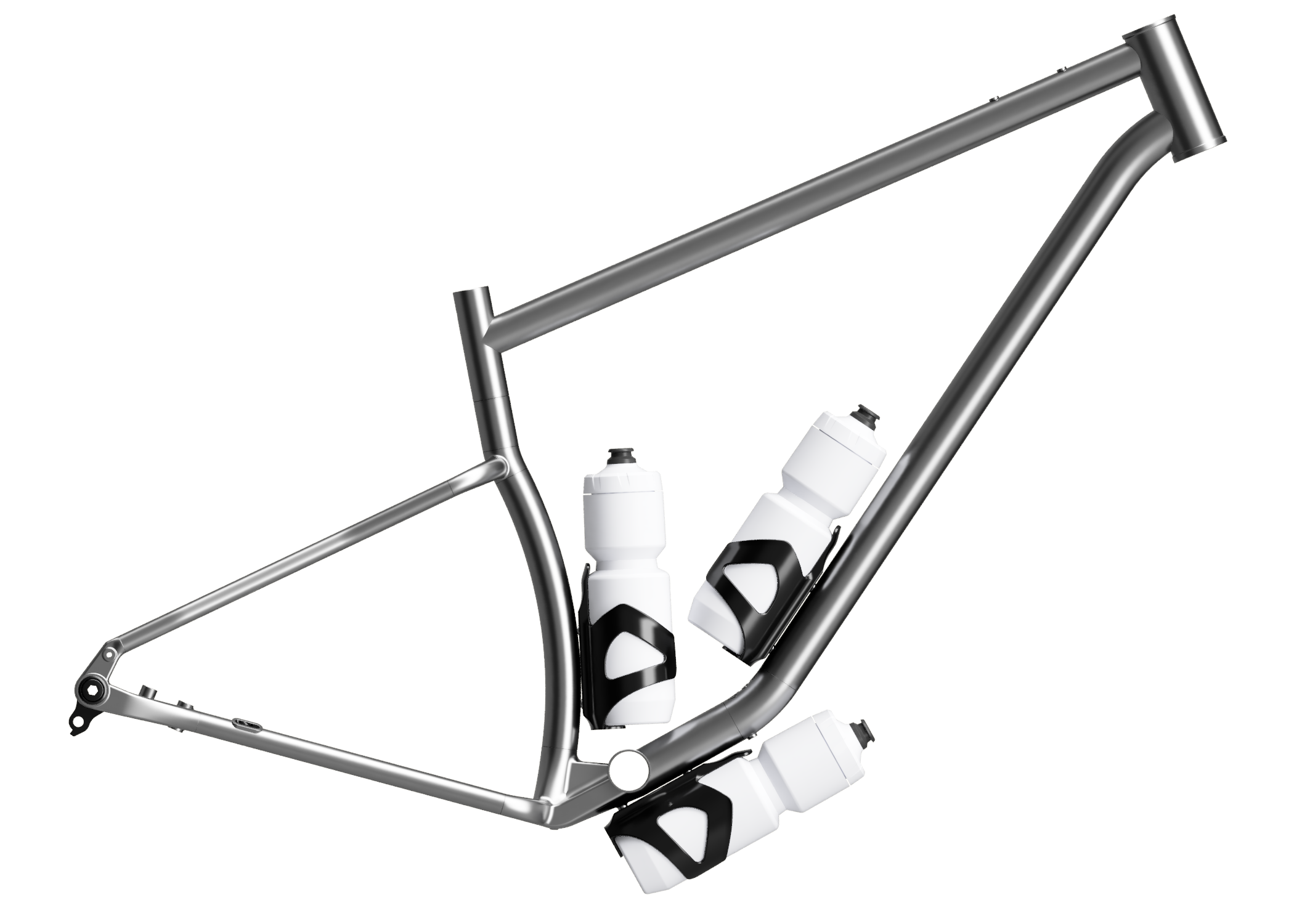

• Bottle Cage Mounts: All frame sizes will accomidate two 750ml bottles in the main triangle plus an additional third mount underneath the down tube which uses a universal tripple boss for either a third bottle or a cargo cage

• Top Tube Bag: There is a pair of bosses on the top tube designed for a bolt-on top tube bag. The first boss is located 80mm from the edge of the headtube with the second being a further 64mm

• Rack Mounts: Dedicated M5 mounts above both dropouts

Timeline:

The expectation is to ship orders 8-10 weeks following payment of the invoice. A more accurate timeline will be given upon completion of the order form.

Süfur Limited Warranty:

Süfur warrants the Wildergoose frame and any Süfur-manufactured components against defects in materials and workmanship for a period of two (2) years from the original date of purchase.

This warranty applies only to the original purchaser and is non-transferable.

If a product is found to be defective under normal use during the warranty period, Süfur will, at its sole discretion:

• Repair the defective product;

• Replace the defective product with the same or equivalent product; or

• Refund the original purchase price of the defective item.

This warranty does not cover:

• Normal wear and tear.

• Cosmetic damage, including scratches, paint chips, and surface corrosion.

• Damage caused by crashes, impacts, abuse, neglect, or misuse.

• Improper assembly, maintenance, or modifications not authorised by Süfur.

• Installation of incompatible components or accessories.

• Use outside the bicycle's intended purpose.

• Consumable items including tyres, tubes, chains, brake pads, bearings, cables, grips, suspension service parts, ect.

• Components manufactured by third parties, which are covered by their respective manufacturers' warranties.

Making a Warranty Claim

To make a warranty claim, the original purchaser must provide proof of purchase and contact Süfur as soon as the issue is identified. Photographs and return of the product for inspection may be required before a claim is assessed. Warranty work must be authorised by Süfur before any repairs are carried out.

This warranty is provided in addition to, and does not limit, any rights or remedies available under the Consumer Guarantees Act 1993 or other applicable New Zealand consumer laws.
